Forst Long Pulse Dust Collector Folded Bag Filter

FORST Long Pulse Dust Collector Pleated Bag Filter Cartridge:Developed to replace traditional filter bags and cages, each pleated bag filter has a one-piece construction design which allows it to be used in new systems or as a simple retrofit in existing bag house equipment for improved system performance. Pleated bag

Featured Products

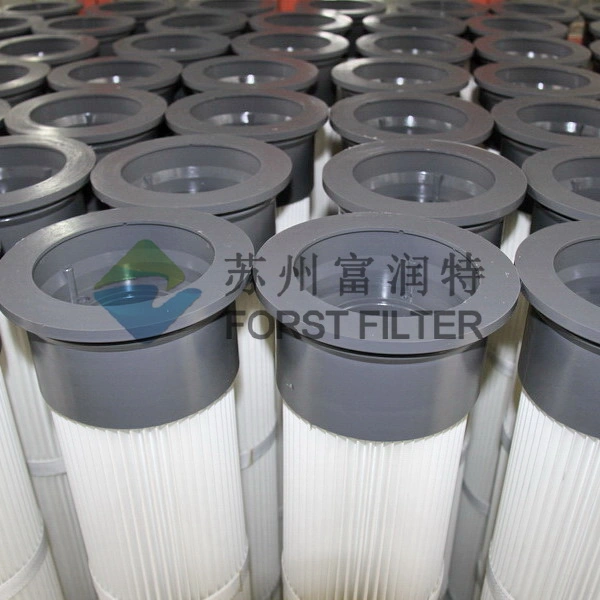

FORST Long Pulse Dust Collector Pleated Bag Filter Cartridge:

Developed to replace traditional filter bags and cages, each pleated bag filter has a one-piece construction design which allows it to be used in new systems or as a simple retrofit in existing bag house equipment for improved system performance.

Pleated bag filters offer more filtration media than traditional felt bags increasing the filtration surface area and thus the filtration capacity. With up to 2-3 times the filter life over traditional 16 oz. polyester felt bags, pleated bag filters provide almost twice as much filtration area in existing equipment due to increased media in the pleat pack design.

This increased filter area causes the air-to-media ratio to decrease when the airflow stays the same, dramatically increasing filtration efficiency while operating at significantly lower differential pressures. Pleated bag filters are shorter than standard fabric bags which allows for larger drop out area and less opportunity for bag abrasion.

Many installation methods to meet all the working conditions, Available in a variety of configurations for top-load, bottom-load and oval styles with multiple filter media options including ePTFE (expanded polytetrafluoruethylene) and spunbond polyester.High temperature media and configurations also available.

Features:
(1) World famous brand filter media: 100% spun bond polyester Smooth surface of filters.
(2) Highest filter efficiency more than 99.99% Proper number of pleats, wide and rigid pleats Large Length-to-OD ratio.
(3) Offers excellent dust release Incorporate design according to requirements Various installation options available, easy to install and save time.
(4) Airtight gasket accessories available Applications in many temperatures conditions. filter media options:
Filter media options: Water and oil repellent treatment.
                                Antistatic treatment.
                                PTFE membrane treatment.
Specification:
ModelFilter areaLengthCartridge (2mLength)Media WeightAir permeabilityMedia type
SFF-P12.3m21m135ºC270g/m27m3/m2/min @12mm WCSpun bond polyester
SFF-P24.6m22m135ºC270g/m27m3/m2/min @12mm WCSpun bond polyester
SFF-D12.3m21m135ºC270g/m27m3/m2/min @12mm WCAntistatic Spun bond polyester
SFF-D24.6m22m135ºC270g/m27m3/m2/min @12mm WCAntistatic Spun bond polyester
SFF-F12.3m21m135ºC270g/m27m3/m2/min @12mm WCSpun bond polyester + PTFE
SFF-F24.6m22m135ºC270g/m27m3/m2/min @12mm WCSpun bond polyester + PTFE
SFF-N12.3m21m190ºC500g/m27m3/m2/min @12mm WCNomex
SFF-N24.6m22m190ºC500g/m212m3/m2/min@12.7mm WCNomex
SFF-B12.3m21m190ºC

Filber Glass
SFF-B24.6m22m260ºC

Filber Glass
SFF-J12.3m21m260ºC

PPS
SFF-J24.6m22m190ºC

PPS
