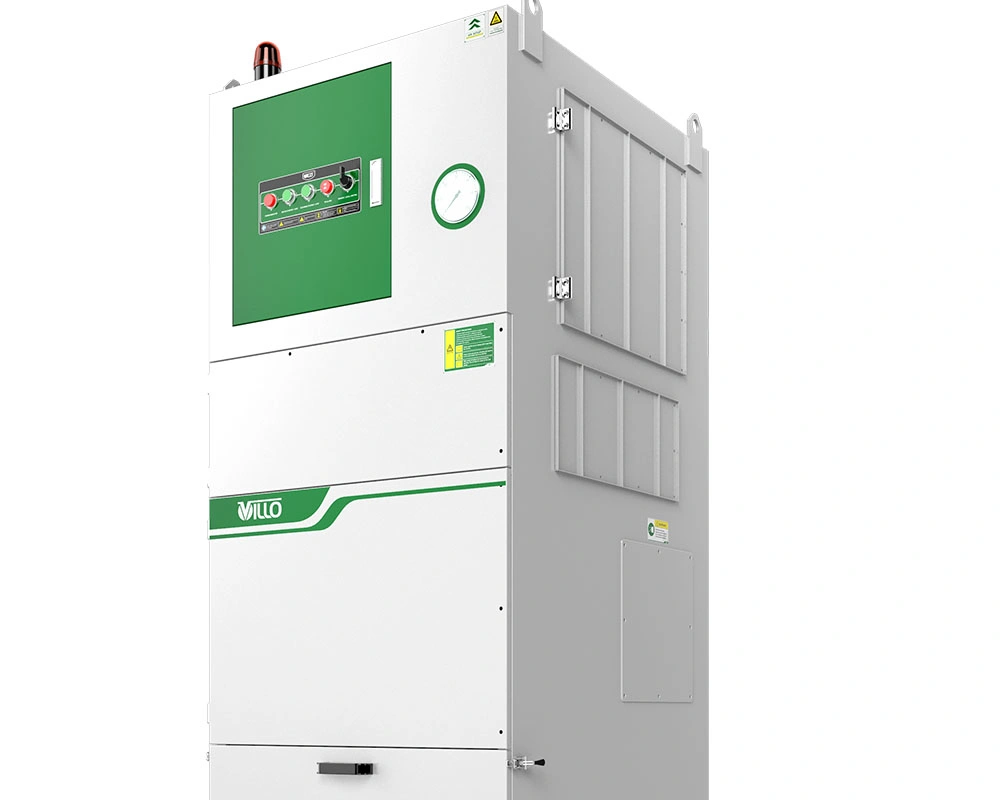

 VJF Series Air Pulse Jet Self Cleaning Industrial Dust Collector

 Structure Diagram
Self Cleaning Pulse Jet Dust Collector, Fume Extractor for Gridning


 Product Description
 VJF series is an industrial dust collector with multi-motor power, large air volume, pulse jet filter cleaning, stability and reliability. It can meet the dust removal needs of multiple industries and wide range of processes.


 Applications

A self-cleaning dust collector for continuous applications, where high collection efficiency is essential, such as grinding, sandblasting, mixing, packaging, vibrating screen, crushing, etc.



 Features
 1. Compact design allows placement flexibility and saves floor space.
 2. The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns.
 3. Pulse jet cleaning method for the filter makes machine to work continuously. User can set the pulse frequency depending upon the requirements.
 4. Real-time monitoring of machine pressure changes can quickly detect whether the filter needs to be cleaned.


 Technical Parameters
ModelVJF-1.5VJF-2.2VJF-3.0VJF-4.0VJF-5.5VJF-7.5VJF-11VJF-15
Voltage (V/Hz)380 / 50
Power(kW) / (HP)1.5 / 2.02.2 / 3.03.0/4.04.0 / 5.55.5 / 7.57.5 / 1011 / 1515 / 20
Starting current (A)254050566595120150
Rated current(A)3.44.86.48.21114.521.529.5
Max air flow
(m³/h) / (CFM)
1500 / 8822200 / 12943000 / 17654000 / 23535500 / 32357500 / 44129000 / 529412000 / 7059
Max air pressure
 (Pa) /(mmH2O)
1800 / 1842500 / 2552500 / 2552500 / 2552500 / 2552600 / 2652700 / 2752800 / 286
Filter area
(m²) / (sq.ft)
11 / 118.522 / 23722 / 23744 / 47444 / 47466 / 71099 / 106699 / 1066
Filter efficiency>99%
 Dust container
 capacity (L) /  (gal)
30 / 7.950 / 13.260 /15.9(2pcs)80 / 21.2(2pcs)100 / 26.4
(2pcs)
100 / 26.4
(2pcs)
Noise dB (A)71±273±274±276±278±279±280±281±2
Filter cleaning methodPulse Jet
Dia. air inlet
(mm) / (in)
Ø150 / 6Ø200 / 8Ø250 / 10Ø300 / 12Ø350 / 14Ø400 / 16
Dimension [L*W*H]
 (mm) / (in)
795*630*1730 /
31.3*24.8*68.1
995*725*1860 /
39.2*28.6*73.3
1100*925*2050 /
43.3*36.4*80.7
1195*1035*2100 / 47.1*40.8*82.71325*955*2040 /
 57.1*37.6*80.3
1325*1305*2180 /
52.2*51.4*85.9
Weight (kg) / (lb)180 / 397260 / 574280 / 618340 / 750360 / 794600 / 1823810 / 1786830 / 1830
It is normal that the current value may fluctuate in a small range
Voltage and frequency will affect the current value
