(1)Grinding Ball Mill application:
It is a Key equipment for grinding after the crush process, and it is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics, it also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
(2)Grinding Ball Mill working principle:

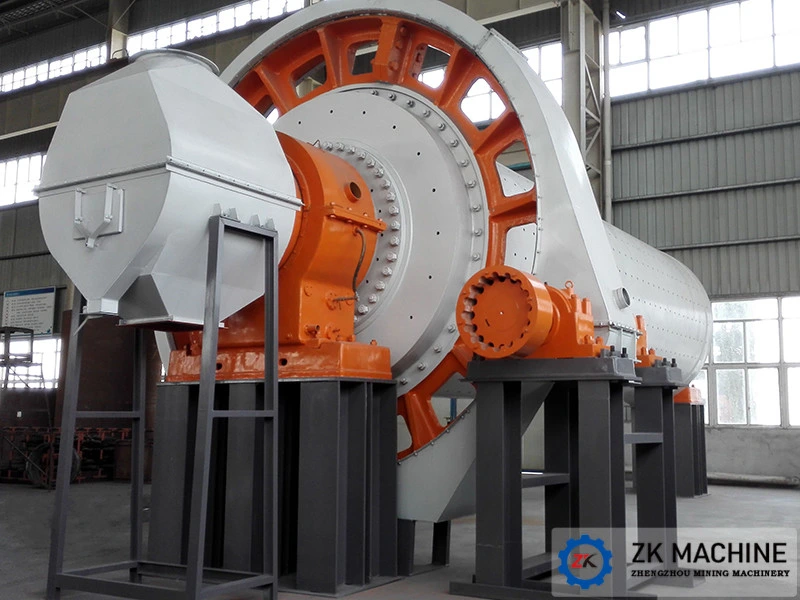

Horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.
Ball Mill Working Principle :

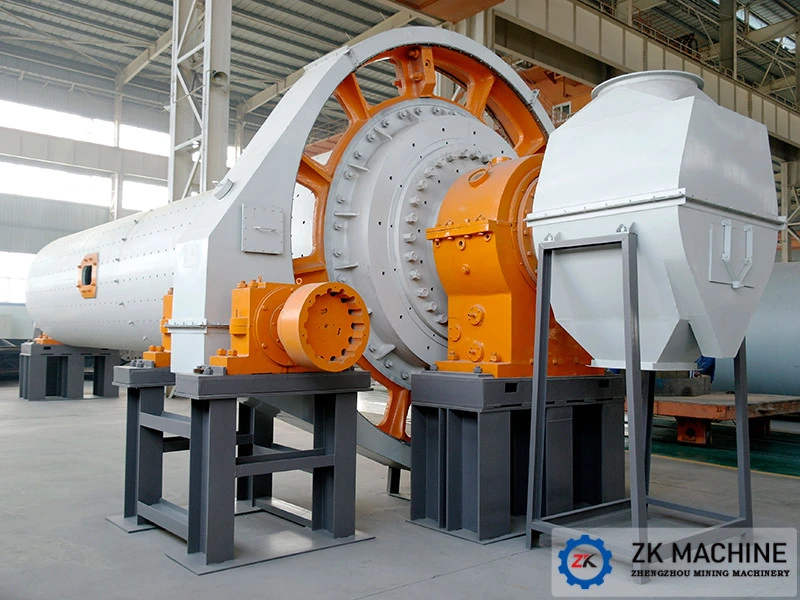

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
1 Liner of ball mill is made of high-quality wear resistant material with high strength, wear resistance and long working life.
2 Product fineness is adjustable, uniform and high qualified.
3 Large capacity and crushing ratio, good sealing performance. It can be adapted to different working conditions.
4 High grinding efficiency, low energy consumption.
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://hnzkjq.en.made-in-china.com/ & http://hnzkjq.en.made-in-china.com/
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://hnzkjq.en.made-in-china.com
|Model||Cylinder diameter(mm)||Cylinder length(mm)||Effective volume(m3)||Mill rotational speed(r/min)||Body capacity(t)||Drive way||Main motor||Weight(t)||Remarks|
|MQY15× 30||1500||3000||5||26.6||9||Edge||95||742||18.5||Drum feeder|
|MQY15× 36||1500||3600||5.7||26.6||10.6||Edge||95||742||17.22||Rubber liner|
|MQY28× 80||2800||8000||43||2.||78.6||Edge||800||187||115||Used for coal water slurry|
