Portable waste gas equipment dust collector

 Working PrincipleThe fume comes from the processing will be sucked into the extractor through the hood, first the fume passes the 1st layer preventer plate which will ramify the fume to avoid residual sparks enter into filter layer directly. Finally, the fume enters the second layer of HEPA filter cartridge for ultimate pu

Featured Products

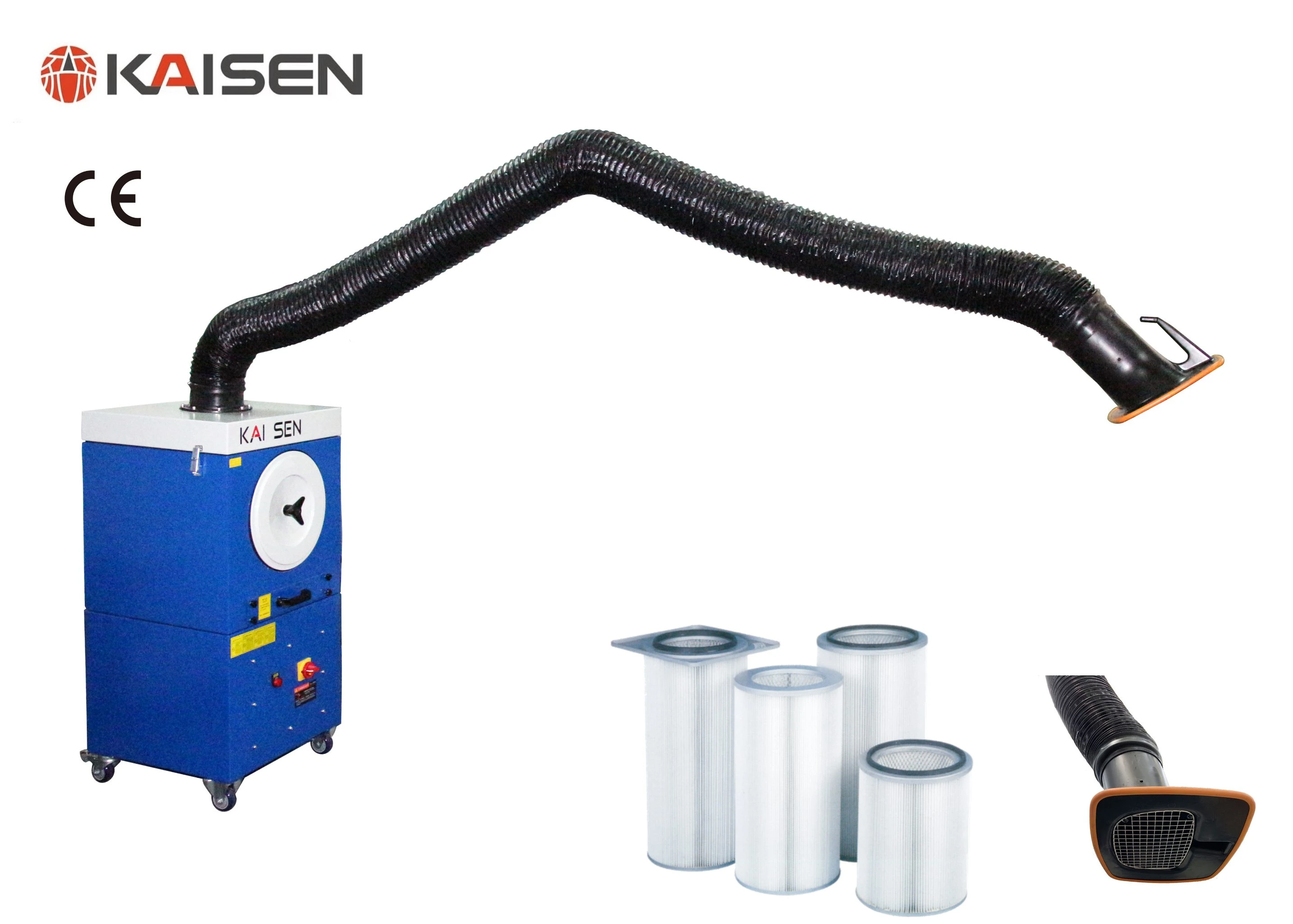

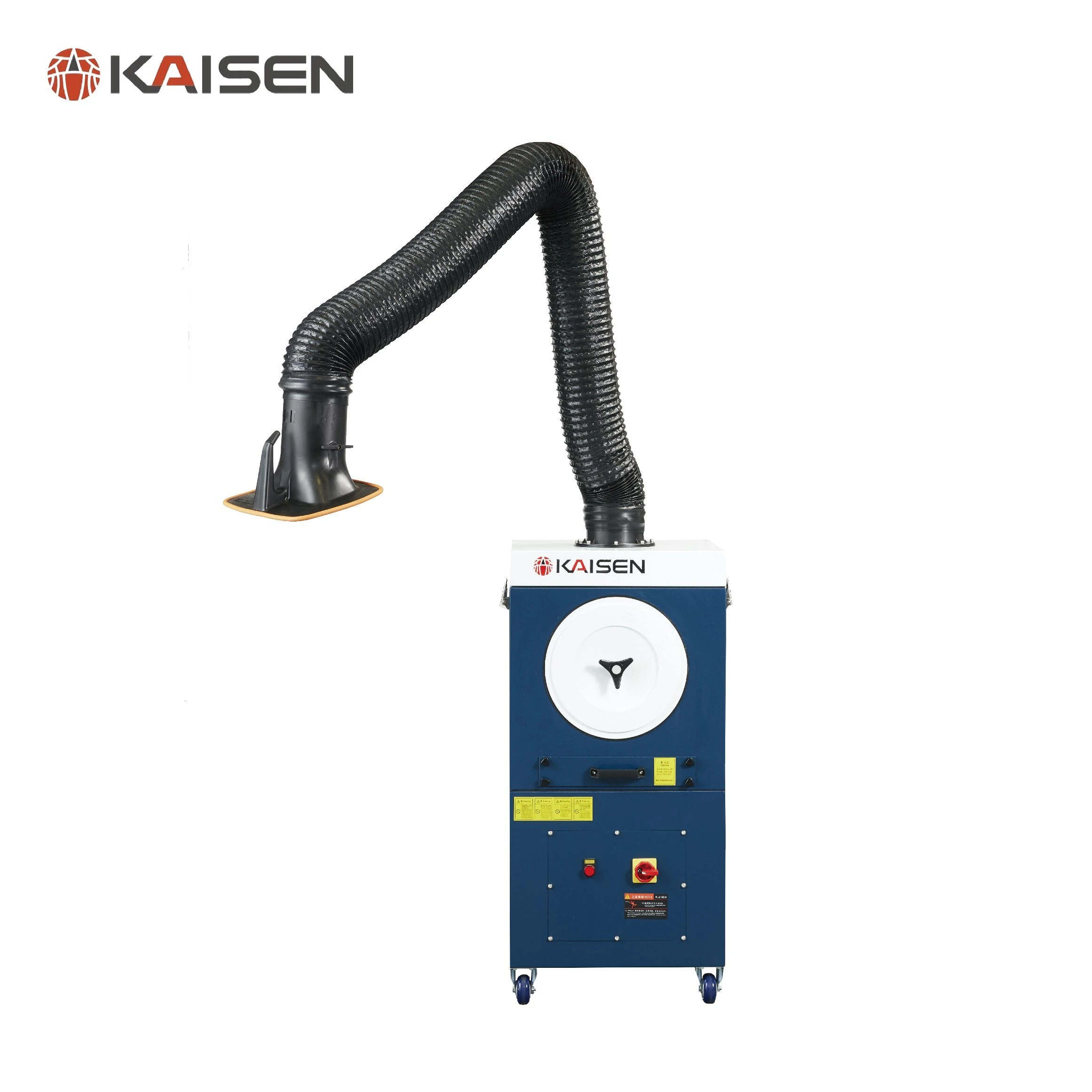

Portable Exhaust Gas Environmental Protection Equipment Dust Extraction Dust Collector
Portable Exhaust Gas Environmental Protection Equipment Dust Extraction Dust Collector



Working Principle

The fume comes from the processing will be sucked into the extractor through the hood, first the fume passes the 1st layer preventer plate which will ramify the fume to avoid residual sparks enter into filter layer directly. Finally, the fume enters the second layer of HEPA filter cartridge for ultimate purification, and HEPA 's filtration efficiency can reach 99.9%. As the filtering precision of the main filter cartridge reaches the indoor emission standard, the filtered clean air can be directly discharged indoor via the vent in the bottom of the extractor.



Product introduction

The fume comes from the processing will be sucked into the extractor through the hood, first the fume passes the 1st layer preventer plate which will ramify the fume to avoid residual sparks enter into filter layer directly. Finally, the fume enters the second layer of HEPA filter cartridge for ultimate purification, and HEPA' s filtration efficiency can reach 99.9%. As the filtering precision of the main filter cartridge reaches the indoor emission standard, the filtered clean air can be directly discharged indoor via the vent in the bottom of the extractor.



Main feature

1. Flexible suction arm can rotate 360°and the freedom to stay anywhere

2. The machine adopts HEPA filter filtration, the filtration precision could reach 0.1μm.

3. Depending on needs, 2m, 3m flexible suction arm are available.

4. On the control panel, it includes:

- Fan Switch

- Power Switch

- Power indicating light


Technical parameters

No.ItemParameter
1Air volume3000±100 m3/h
2Motor power1.5 kW
3Power supply3x380V/50Hz
4Filtration area8 m2
5Number of cartridge filters1 piece
6Filter mediumNano coated filter element
7Cleaning wayManual cleaning
8Filtration efficiency>99.9%
9Noise≤74±5dB(A)
10Weight120±5kg
11Dimensions(excluding suction arm)550(L)×550(W)×1165(H)mm

Cases

Portable Exhaust Gas Environmental Protection Equipment Dust Extraction Dust Collector
Portable Exhaust Gas Environmental Protection Equipment Dust Extraction Dust Collector



Company profile

Shanghai Kaisen Environmental Technology Co.,Ltd has beenalways committed to designing, R&D and manufacturing of industrial dust collectors.Since 2007 we had been engaged in dust collectors for ten years.Our products are extensively applied to the processing of welding, cutting, grinding, painting, casting, chemical, wood processing, paper and other industries.

The products of Kaisen include mobile welding dust collectorwall mounted dust collectorhigh vacuum dust collector, laser & plasma cutting dust collector, grinding fume collector, 3D printer dust collector and system solution of fume disposal. Also,Kaisen had passed ISO9001, ISO14001 and OHSAS18001 approvals, most of products are CE certification.
