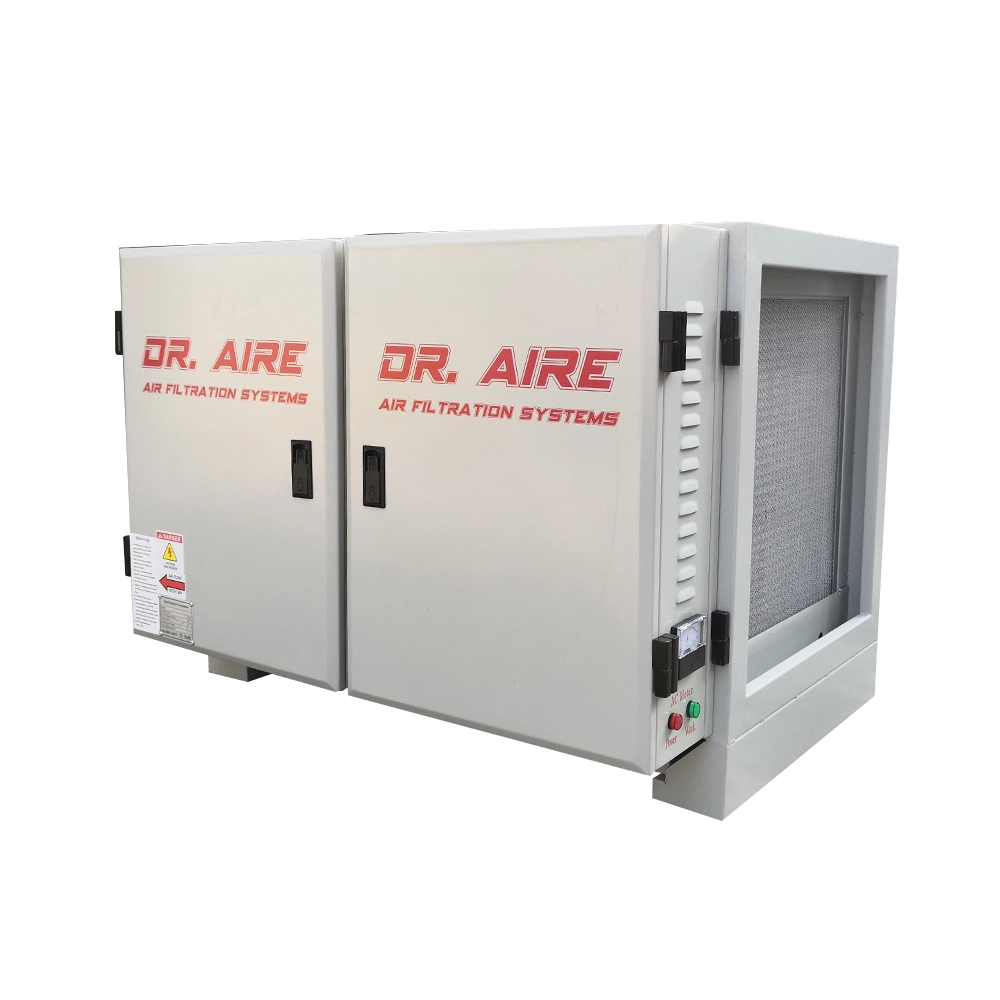

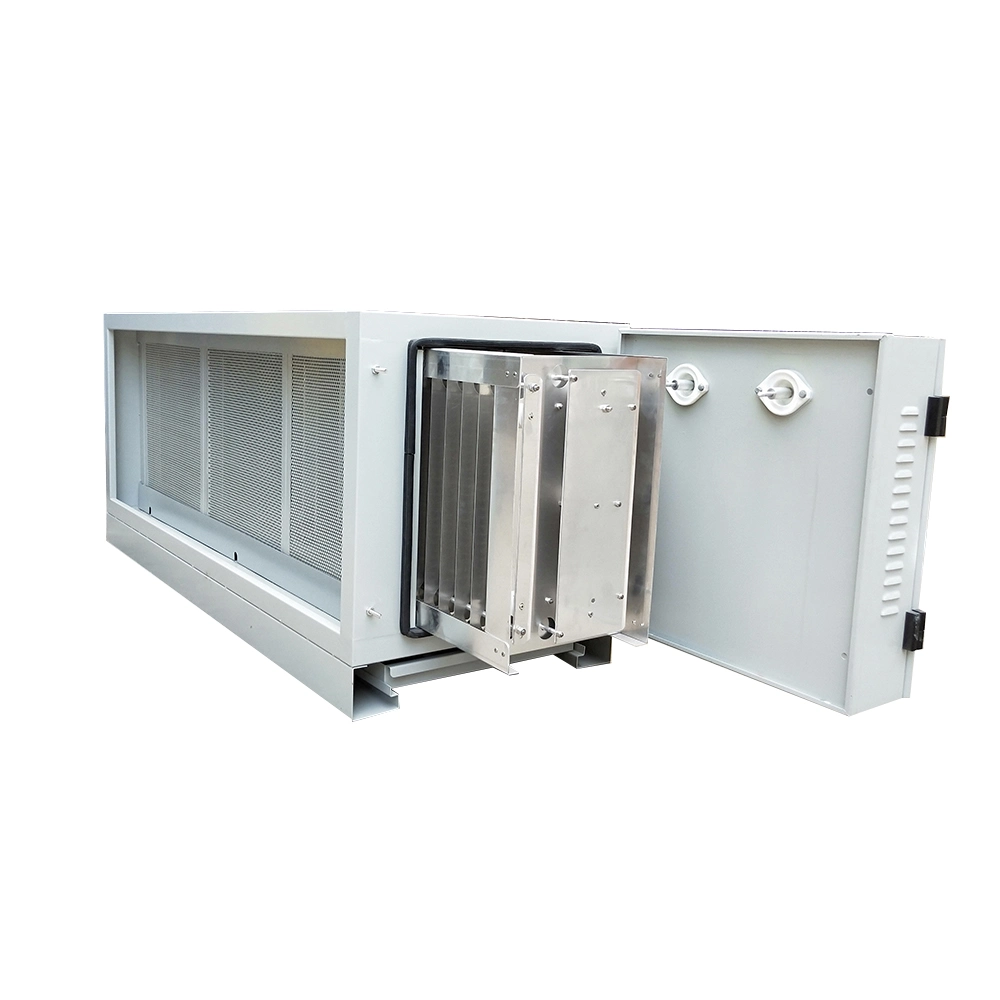

Low-cost and easy-to-maintain hotel restaurant kitchen smoke ion purifier Smoke Purification odor removal equipment| DGRH-K Single Pass Electrostatic Precipitator | |||||||||
| NO. | Model | Air Flow (M³/H) | Cabinet Size L*W*H (MM) | Flange Size (W*H) | Efficiency | Pressure drop (Pa) | Power (Watt) | Net Wight (KG) | Remark |
| 1 | DGRH-K-3500(U) | 3000-3500 | 640*765*690 | 485*530 | 95% | 39 | 120 (200) | 60 | UV-C optional |
| 2 | DGRH-K-7000(U) | 6000-7000 | 640*1300*690 | 1020*530 | 95% | 39 | 220 (520) | 94 | UV-C optional |
| 3 | DGRH-K-10500(U) | 9000-10500 | 640*1835*690 | 1560*530 | 95% | 39 | 320 (920) | 122 | UV-C optional |
| 4 | DGRH-K-14000(U) | 12000-14000 | 640*1300*1380 | 1020*1220 | 95% | 39 | 440 (1040) | 188 | UV-C optional |
| 5 | DGRH-K-21000(U) | 18000-21000 | 640*1835*1380 | 1560*1220 | 95% | 39 | 640 (1840) | 244 | UV-C optional |
| 6 | DGRH-K-31500(U) | 27000-31500 | 640*1835*2070 | 1560*1950 | 95% | 39 | 960 (2760) | 366 | UV-C optional |
| DGRH-K Double Pass Electrostatic Precipitator | |||||||||
| NO. | Model | Air Flow (M³/H) | Cabinet Size L*W*H (MM) | Flange Size (W*H) | Efficiency | Pressure drop (Pa) | Power (Watt) | Net Wight (KG) | Remark |
| 1 | DGRH-K-2-3500(U) | 3000-3500 | 1060*765*690 | 485*530 | 99% | 45 | 240 (320) | 120 | UV-C optional |
| 2 | DGRH-K-2-7000(U) | 6000-7000 | 1060*1300*690 | 1020*530 | 99% | 45 | 440 (740) | 188 | UV-C optional |
| 3 | DGRH-K-2-10500(U) | 9000-10500 | 1060*1835*690 | 1560*530 | 99% | 45 | 640 (1240) | 244 | UV-C optional |
| 4 | DGRH-K-2-14000(U) | 12000-14000 | 1060*1300*1380 | 1020*1220 | 99% | 45 | 880 (1480) | 376 | UV-C optional |
| 5 | DGRH-K-2-21000(U) | 18000-21000 | 1060*1835*1380 | 1560*1220 | 99% | 45 | 1280 (2480) | 488 | UV-C optional |
| 6 | DGRH-K-2-31500(U) | 27000-31500 | 1060*1835*2070 | 1560*1950 | 99% | 45 | 1920 (3720) | 732 | UV-C optional |
